Sumray Solar Battery
Sumray builds low-voltage modular energy storage for Australian homes and businesses that want to run on their own solar well after sunset. The Sumray SR-LV14G uses lithium iron phosphate (LiFePO₄) cells, delivers 100% usable capacity, and stacks from a single 13.92kWh module up to a 55.68kWh tower, with up to four towers running in parallel. At Greenlight Solar, we supply and install the full Sumray range and size each system to the way your household actually uses power across the evening peak.
What sets the Sumray battery apart for Australian conditions is the combination of a genuinely usable pack, an IP66 outdoor rating with salt-spray-tested construction, and a 15-year manufacturer warranty. Whether you are adding storage to an existing array or building a new solar and battery system, the SR-LV14G pairs with a Solis hybrid inverter and integrates cleanly with the rest of your setup. Talk to our team about the right capacity and inverter pairing for your home.
Technical Specifications of the Sumray Solar Battery
The Sumray SR-LV14G is a 48V low-voltage battery available in four stacked configurations. Every configuration draws on the same LiFePO₄ chemistry, 100% depth of discharge, and safety architecture; capacity, current and physical size scale with the number of modules
Battery capacity
290Ah
580Ah
870Ah
1160Ah
Rated energy
13.92kWh
27.84kWh
41.76kWh
55.68kWh
Usable energy(100% DoD)
13.92kWh
27.84kWh
41.76kWh
55.68kWh
Rated voltage
48V
48V
48V
48V
Charge / discharge current
100A / 100A
200A / 200A
300A / 300A
300A / 300A
Peak discharge(30s)
120A
240A
360A
360A
Weight
120 ±5kg
230 ±10kg
340 ±15kg
450 ±20kg
Dimensions(W*D*H)
850×440×360mm
850×440×590mm
850×440×820mm
850×440×1050mm
Specifications common to the range:
- Chemistry: Lithium iron phosphate (LiFePO₄)
- Depth of discharge: 100% (rated energy and usable energy are the same figure)
- Cycle life: engineered for 10,000+ charge cycles
- Communication: CAN protocol
- Expansion: up to four units in parallel
- Cooling: natural convection, no active fan
- Ingress and corrosion: IP66 rated, C4 corrosion protection, salt-spray tested
- Protection: module-level circuit breaker (MCB) and aerosol fire suppression fitted as standard
- Temperature: charging 0–50°C, discharging −20 to 50°C, with optional battery heating for cold-climate performance
- Certification: UN38.3, SDS, CB62619, IEC62040, IEC62477, IEC61000, IEC60730 and IEC60068-2-52
- Warranty: 15-year manufacturer warranty
SR-LV14G-L1 — 13.92kWh
The entry configuration suits a typical two-to-four-person home covering its evening load and overnight base draw. Its 13.92kWh of usable capacity sits inside the highest-value federal rebate band, which makes it one of the most rebate-efficient ways to add storage.
SR-LV14G-L2 — 27.84kWh
A two-module tower for larger households, homes with ducted air conditioning, or anyone wanting most of a summer afternoon and evening carried on stored solar rather than grid power.
SR-LV14G-L3 — 41.76kWh
Three modules for high-consumption homes, homes charging an EV overnight, or small commercial premises. Charge and discharge current lifts to 300A for heavier simultaneous loads.
SR-LV14G-L4 — 55.68kWh
The full single-tower configuration for the largest residential loads and light commercial use. Stack a second tower in parallel when you need to go beyond 55.68kWh.
100% usable capacity
Rated energy and usable energy are the same number. A 13.92kWh module gives you 13.92kWh, so you are not paying for storage the system never lets you touch.
Built for the Australian outdoors
IP66 ingress protection, C4 corrosion protection and salt-spray testing mean the SR-LV14G is rated for genuinely exposed installs, including coastal properties across Sydney and the NSW coast.
Grows with your home
Start at 13.92kWh, stack to 55.68kWh in one tower, then run up to four towers in parallel. Add capacity as your load grows instead of replacing the system.
Safety at the module, not just the pack.
Every module carries its own circuit breaker, and the system adds an aerosol fire suppression layer plus parallel architecture, so a single module fault does not bring down the tower.
Paired with the right inverter
The Sumray battery runs on a Solis hybrid inverter. An 8kW single-phase Solis can move more energy in and out than the common 5–6kW units, which matters for running air conditioning, hot water and backup circuits together, and for pulling maximum value from off-peak and free-power windows. See our Solis inverter range.
Sumray Battery Rebates
A Sumray battery installed by an accredited installer qualifies for the federal Cheaper Home Batteries Program, the national battery discount that began on 1 July 2025 and moved to a tiered structure on 1 May 2026. The discount is delivered through Small-scale Technology Certificates (STCs) and applied as an upfront reduction at the point of sale, not claimed back later.
How the tiers work. The rebate pays the highest rate per usable kWh on the first 14kWh of capacity, a reduced rate on the band above that, and a smaller rate again on higher capacity, up to 50kWh. Because the SR-LV14G-L1 delivers 13.92kWh of usable capacity at 100% depth of discharge, almost the entire pack sits inside that top-value band, which is what makes it so efficient to claim. At current STC values the program is designed to take roughly 30% off the installed battery cost.
It stacks. The federal discount can be combined with eligible state and territory incentives (for example the NSW battery incentive under the Peak Demand Reduction Scheme), so your final out-of-pocket figure depends on where you live and the capacity you install.
Worked example (indicative). A single L1 module at 13.92kWh usable, with the whole pack in the top rebate band, attracts a substantial upfront discount at current certificate prices. The exact figure moves with the STC price on your installation date and steps down again from 1 January 2027, so installing sooner secures a higher rate.
We confirm your exact rebate at the quote stage. Read more on the federal solar battery rebate, or contact Greenlight Solar for a figure specific to your address and system size.

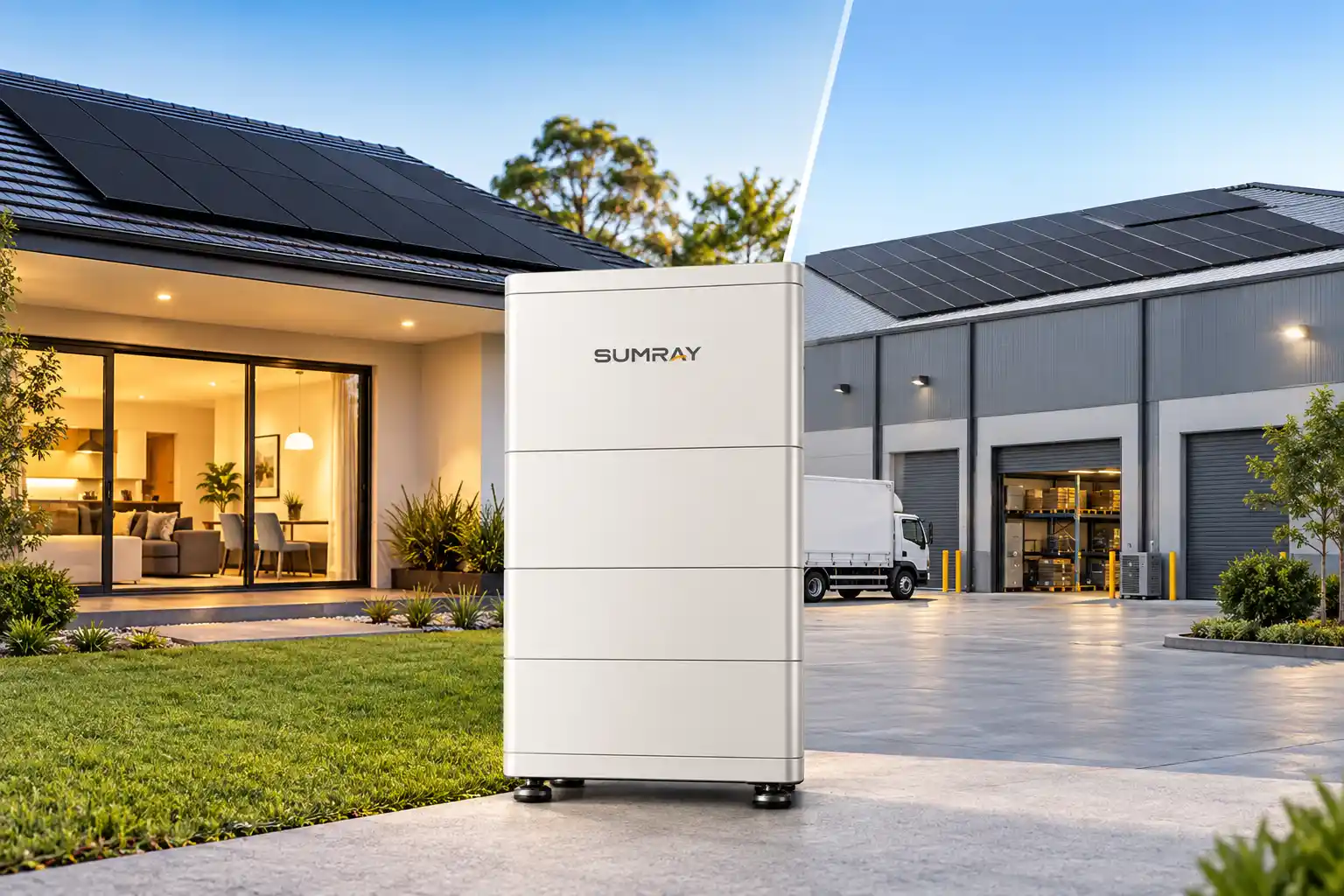

Sumray Solar Battery Use
Sumray for Residential Use
For residential homes, the SR-LV14G-L1 (13.92kWh) and L2 (27.84kWh) cover the range most families need to shift their solar into the evening peak and hold backup for outages. The modular design lets you start smaller and stack a second module later, without replacing what you already own. The salt-spray-tested, IP66 build suits coastal and outdoor installs common across NSW and QLD.
Sumray for Commercial Use
For commercial premises and high-consumption sites, the L3 (41.76kWh) and L4 (55.68kWh) configurations, and multiple towers in parallel, deliver the capacity and the 300A charge/discharge current heavier loads call for. Greenlight installs commercial and ground-mount solar across NSW and QLD, and can integrate Sumray storage into a larger system.
Why Chooser Greenlight Solar for Your Sumray Battery
Accredited installers: Clean Energy Council-accredited, NETCC-approved seller, with the certifications behind every install.
Correct sizing: we match battery capacity and Solis inverter size to your evening load and backup needs, not the biggest box on the shelf.
Rebate handled for you: we apply the federal discount at the point of sale and confirm any state incentive you qualify for.
Local support: NSW head office and a Queensland office, with genuine after-installation support.
Full-system capability: solar panels, inverters, batteries and EV charging from one installer.
Eligible Households Can Be Qualified For Rebates Up To $10,000 On Solar Battery Installation!
We Work With Quality Brands
FAQs
How much does a Sumray battery cost in Australia?
The installed price depends on the configuration you choose (13.92kWh up to 55.68kWh), your inverter pairing and your site. The federal rebate takes roughly 30% off upfront, and eligible state incentives can stack on top. Contact Greenlight Solar for a fixed quote for your address.
What warranty does the Sumray SR-LV14G come with?
The SR-LV14G is backed by a 15-year manufacturer warranty across every configuration from 13.92kWh to 55.68kWh, one of the longer terms in the current home-battery market.
Can I claim the federal battery rebate on a Sumray battery?
Yes. Installed by an accredited installer, a Sumray battery qualifies for the Cheaper Home Batteries Program. Because the L1's 13.92kWh sits inside the top rebate band, it is one of the most rebate-efficient configurations to install.
How much Sumray battery storage do I need?
Most homes are well matched by 14–28kWh, sized to the evening and overnight load you want to cover on stored solar. Our team reviews your usage and recommends the configuration and inverter size that fit, rather than oversizing the system.
Is the Sumray battery safe?
The SR-LV14G uses thermally stable LiFePO₄ cells and adds module-level circuit-breaker protection, an aerosol fire suppression system and parallel architecture, so a single module fault does not take down the tower. It is certified to UN38.3 and a range of IEC safety standards.
Can the Sumray battery be installed outdoors or near the coast?
Yes. It carries an IP66 rating, C4 corrosion protection and has passed salt-spray testing, which makes it suitable for exposed and coastal installations across Sydney, the NSW coast and QLD.
Which inverter works with the Sumray battery?
The Sumray battery pairs with a Solis hybrid inverter, commonly an 8kW single-phase unit that can run larger loads and take on more free or off-peak energy than a typical 5–6kW inverter. See our Solis inverter page for details.
Can I expand my Sumray battery later?
Yes. The stacked design lets you add modules within a tower up to 55.68kWh, and you can run up to four towers in parallel as your energy needs grow.
Does the Sumray battery keep working during a blackout?
With the correct inverter and backup configuration, the Sumray battery supplies essential circuits during a grid outage, so your home keeps running on stored solar.
